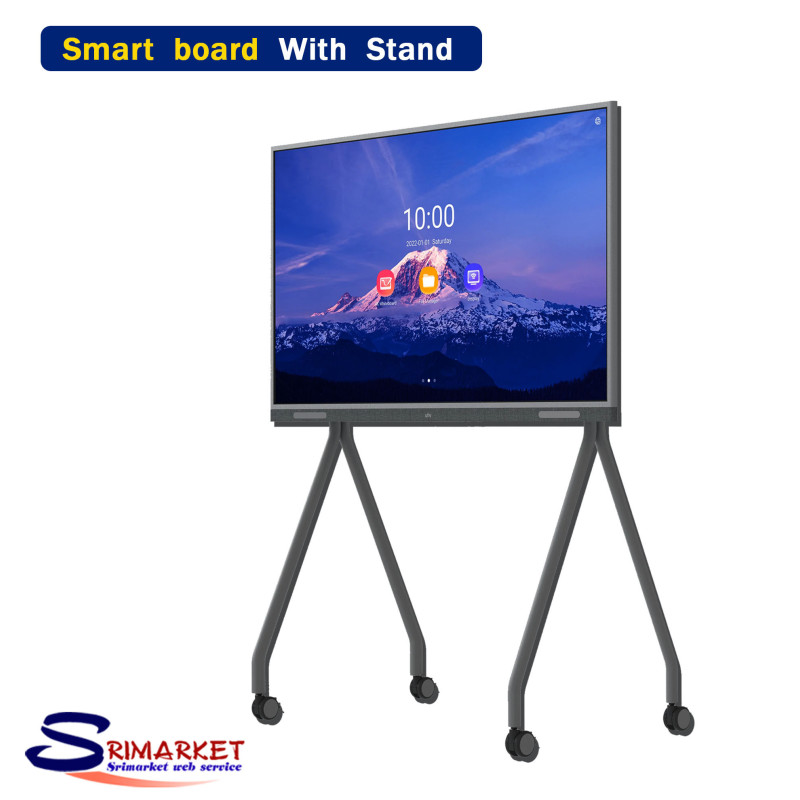

Uniview MW3565-U-X 65 Inch 4K UHD Touch Interactive Flat Panel Display

Panel   Description

Panel Size  :  65"

Resolution  :  3840 x 2160

Brightness (cd/m²)  :   350

Contrast Ratio :  1200:1

Response Time (ms)  :  8

Color Support :  1.07B

Viewing Angle (H/V)  :  178°/178°

Refresh rate（Hz : 60

Color gamut  :  72%

Lifespan  :  50000H

Surface Hardness  :  9H (7 on the Mohs scale)

Haze Value  :  25%

Display Size（mm）: 1428.48 x 803.52

Pixel Pitch (H x V) (mm)  :  0.37 x 0.37

System   Description

RAM  :  DDR4, 4GB

ROM  :  eMMC, 32GB

CPU  :  Amlogic T982 quad‑core A55

CPU Frequency  :  1.9GHz

Operation System  :  Android 13.0

Touch  Description

Touch Control :  Supports 32‑point touch, 20‑point write

Recognizable Object  : 5 points, 3mm

Touch Precision (mm) :  1

Glass  :  4mm tempered glass, 7H (Mohs), anti‑glare

Touch Response Time (ms)  :  ≤5

Touch technology  :  Infrared touch

Interface         Description

Video Input  :  2 x HDMI IN (4K@60)

                      2 x AV analog video input

Video Output  :  1 x AV analog video output

Audio Output :  1 x earphone, 3.5mm interface

Other Interfaces  :  1 x SPDIF, 1 x RS232, 1 x USB 3.0, 4 x USB 2.0, 1 x USB Type‑C, 2 x TOUCH OUT

Network  :  1 x RJ45, supports 10M/100M Base‑T self‑adaptive

General  Description

Operating Voltage  :  AC 100V to 240 V, 50/60 Hz

Overall Power Consumption (W)  :  185

Product Dimensions (W x H x D) (mm)  :  1500.6 x 886.8 x 115.7

Package Dimensions (W x H x D) (mm)  :  1615.8 x 1011.9 x 220

Operating Temperature  :  0°C to 50°C

Operating Humidity  :  10% to 90% RH (noncondensing)

Accessories Included  :  1 x power cable, 2 x touch pen, 1 x quick guide, 1 x wall mount bracket, 1 x infrared remote control, 3 x rod antenna

Audio  Description

Speaker  :  2.0 sound channel

Left channel : 1 x 15W, 8Ω

Right channel : 1 x 15W, 8Ω

Wi-Fi   Description

Wi-Fi Configuration  :  Built‑in dual‑frequency Wi‑Fi 5 module

Supports AP and station modes

Wi-Fi Performance  :  Up to 20m transmission distance in open space

Bluetooth  Description

Bluetooth Version  :  5.0

OSD  Description

Multi-Language          23 (Simplified Chinese, Traditional Chinese, Japanese, German, English, Spanish, French, Italian, Portuguese, Russian, Korean, Vietnamese, Ukrainian, Hungarian, Polish, Thai, Arabic, Kazakh, Bulgarian, Galician, Catalan, Uzbek, Indonesian)
